Product Description

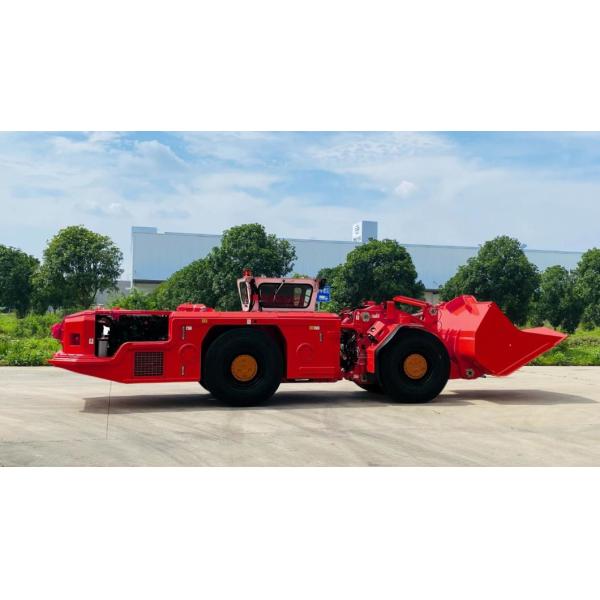

SL10 underground mining loader is suitable for 4.1×4.1m mine tunnel. It is highly intelligent, safe and reliable to use, which has good overall machine stability and can greatly improve mine productivity and profitability. The whole working mechanism adopts Z-Link, which has strong shoveling force and unloading height of up to 1985mm, which meets the requirements of loading trucks below 30 Ton in underground mining process.
SL series LHDs are used for ore loading and transportation in underground hard rock mining in non-coal mines. The core components are all internationally renowned brand products. The design and manufacture of the whole vehicle have reached the industry-leading level. , improve operational safety, reduce failure rate, and improve loading efficiency.
The SL series includes SL07, SL10, SL14, SL14Battery products with a load capacity of 7 tons, 10 tons, and 14 tons, which are suitable for different working conditions.
Product Parameters
| | | unit | SL10 Underground Loader |
| Capacity | Standard bucket | m³ | 4 |
| Operating Weight | kg | 28900 |
| Rated load capacity | kg | 10000 |
| Breakout force | kN | 185 |
| Traction force | kN | 200 |
| Configuration | Drive Model | | 4×4 |
| Transmission Model | | hydraulic transmission |
| Brake model | Working Brake | spring applied and hydraulic released Equipment |
| Parking Brake | spring applied and hydraulic released Equipment |
| Equipment Size | Dimension | mm | L | 9790 |
| W | 2580 |
| H | 2375 |
| Ground Clearance | mm | 380 |
| Wheelbase | mm | 3500 |
| Turning Radius | mm | inner | 3210 |
| outer | 6510 |
| Unloading height | mm | 1985 |
| Unloading distance | mm | 1725 |
| Performance | speed | km/h | 1st gear | 4.4 |
| 2nd gear | 9 |
| 3rd gear | 17 |
| 4th gear | 24 |
| Gradeability | % | 25 |
| Diesel engine | model | | VOLVO TAD853VE(optional TAD1150VE) |
| Power | kW | 235 |
| Torque | Nm | 1310 |
| Engine speed | rpm | 2200 |
| Displacement | L | 7.7 |
| Fuel injection system form | | Common rail |
| Emissions | | Euro stage III |
| Fuel tank refill capacity | L | 320 |
| Configuration | Converter | | DANA C5000 |
| Transmission | | DANA 36000 |
| Axle | | DANA 20D |
| Tire | | 18.00×25 |
| optional | Automatic central lubrication | | LINCOLN |
| centralized fire extinguishing system | | Ansul/Protecfire |
| Emissions | | Euro Stage IV |
| Remote control system | | national |
Company Profile
Hubei Shentuo Intelligence Equipment Co., Ltd. is a wholly-owned subsidiary of Yimu Intelligence Technology Co., Ltd. and consists of Hubei Suizhou production plant and Wuhan R&D center, which is a technology-based enterprise focusing on the research and development, production, sales, after-sales and export of underground equipment for coal and metal mines, aiming at the global market with its products.
Shentuo Intelligence is based on scientific and technological innovation and oriented to customers' needs. Currently, Shentuo Intelligence has a new generation of concrete mixer trucks, loaders, mine trucks and other series of diesel and purely electric models, which can adapt to customers' mining needs in a variety of situations, improve the productivity and economic benefits of mining, and strive to improve the sense of safety and happiness of underground workers.
Shentuo Intelligence adopts advanced quality management system to provide first-class quality underground equipment: at the same time, Shentuo Intelligence adheres to intelligent manufacturing, and builds up the leading manufacturing capacity of underground equipment industry through advanced ERP and informationization system to ensure the delivery cycle. In the future, Shentuo Intelligence will continue to be committed to all-round innovation, provide the most intelligent and efficient technology and products for the domestic and international mining industry, and make continuous efforts to promote productivity enhancement, industry development and ESG construction! Exhibition
Certifications

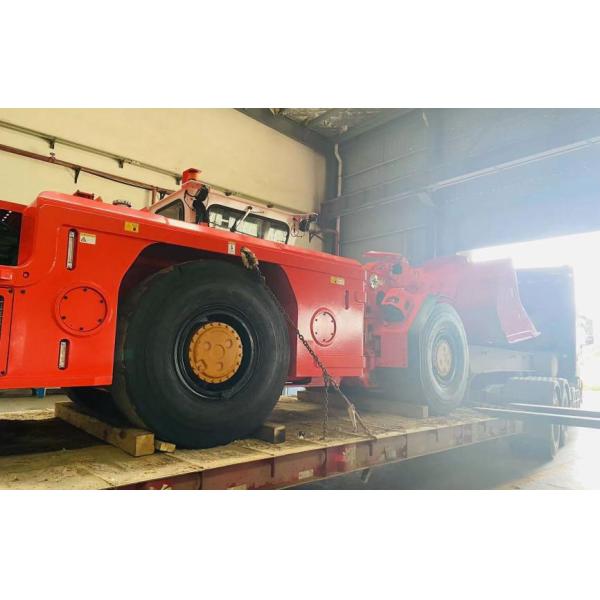

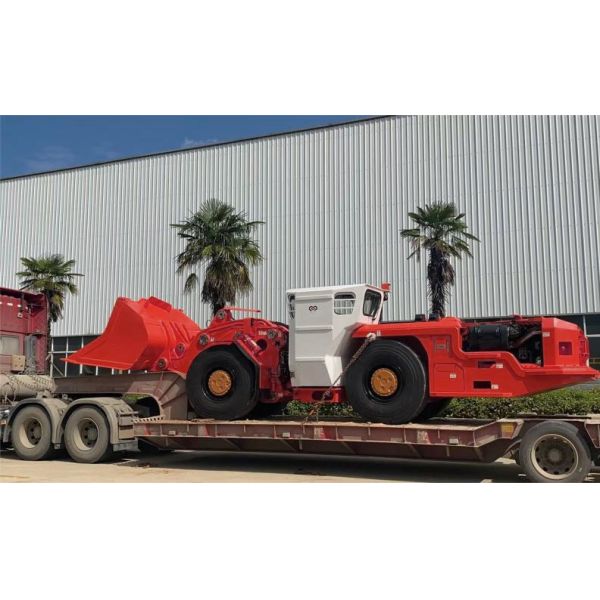

Packaging & Shipping
Our Advantages
FAQ
1. Q: What kind of terms of payment can be accepted?
A: Normally we can work on T/T and other terms is also negotiable.
2. Q: Which incoterms 2010 terms can we work?
A: Normally we work on FOB, CFR, CIF, EXW.
3. Q: What about the delivery time?
A:It depends on the model, usually 2-6 months after receiving the deposit.
4. Q: What about the warranty time?
A: In12 months after shipment, o within 2000 hours of equipment operation, we can provide the free repair service.
5. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 set.
6. Q: Could you stick customers' brands on the products?
A: We warmly welcome the OEM orders.
